Rollimat
pivot polisher
Rollimat pivot polisher

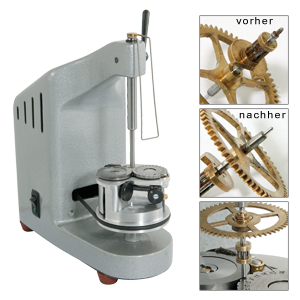

The "Rollimat" pivot polisher is a modern tool with a 220 volt motor for rolling and polishing
clock pivots. Rasterbrosche with 24 bearings for pivots from 0.30-4.00 mm and Widia disc. A
depth-limiter guarantees that the pivot will be rolled to the dimension set and the bronze bearing
will not be damaged. The adjustable pressure imposed is created by a steel spring.
Operation
Measure the unfinished pivot, clamp it in the required notch, fix the pivot thickness. Fix the
workpiece with the fingers and switch on the polisher for one to two seconds. The pivot is
finished, and it has an outstanding polish from the Widia roller disc.
Technical details
The turning head of the Rollimat rotates five times per second
Output: 100 watts
Dimensions (L x B x H): 220 x 100 x 240 mm
Weight: 4 kg
Mains supply: 230 V~ 50Hz
