e-Shop Katalog

Basic-Set

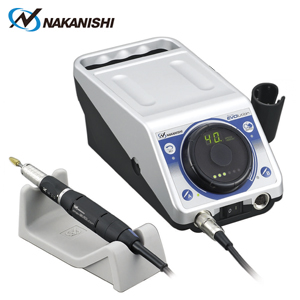

• Complete set: control unit, micromotor and quick release handpiece.

Micromotor

Micro motor NSK EVOlution EV410 IR-310

Powerful and brushless micro motor of the top class from Nakanishi for grinding, milling, polishing and setting work. Powerful even at low speeds. Control unit with infinitely variable speed regulator, digital speed display, as well as clockwise and anti-clockwise rotation.

Advantages:
• Motor speed recognition
• Clockwise/anticlockwise rotation
• Digital - stepless speed control
• Visual speed display
• Overload display
• Connection for two handpieces
• On/off switch on the motor
• Handpiece stand
• Handpiece holder on the control unit

Complete set consisting of:
1x NSK EVOlution control unit NE-249
1x NSK EVOlution micromotor incl. motor cable ENK-410S
1x NSK EVOlution handpiece IR-310
1x NSK EVOlution collet chuck Ø 2.35 mm
1x NSK EVOlution collet chuck Ø 3.00 mm
1x NSK EVOlution handpiece rest

Technical data:
Speed: 1,000 to 40,000 rpm
Torque 4.3 Ncm
Power micromotor: 73 Watt
Dimensions control unit (L x W x H): 254 x 130 x 97 mm
Weight: 2300 g
Mains operation: 230V ~ 50Hz

Nakanishi NK-8225

nameMicromotor

HandpieceIR-310

RPM40.000 rpm

manufactureNSK

modelEmax EVOlution

item No.692128
